纖薄有型、全力出擊！MSI 全新 GAMING SLIM 系列顯示卡登場

全球電競硬體領導品牌，MSI 推出由 NVIDIA® GeForce RTX™ 40 系列圖形處理器提供支持的全新顯示卡系列－GAMING SLIM。承襲過往 MSI GAMING 系列最具標誌性的 GAMING 元素，GAMING SLIM 在確保高效能的同時，提供更薄、更輕，更適合靈活的系統組裝使用。GAMING SLIM 系列將用於 GeForce RTX 4090、GeForce RTX 4080、GeForce RTX 4070 Ti、GeForce RTX 4070 和 GeForce RTX 4060 Ti 圖形處理器。

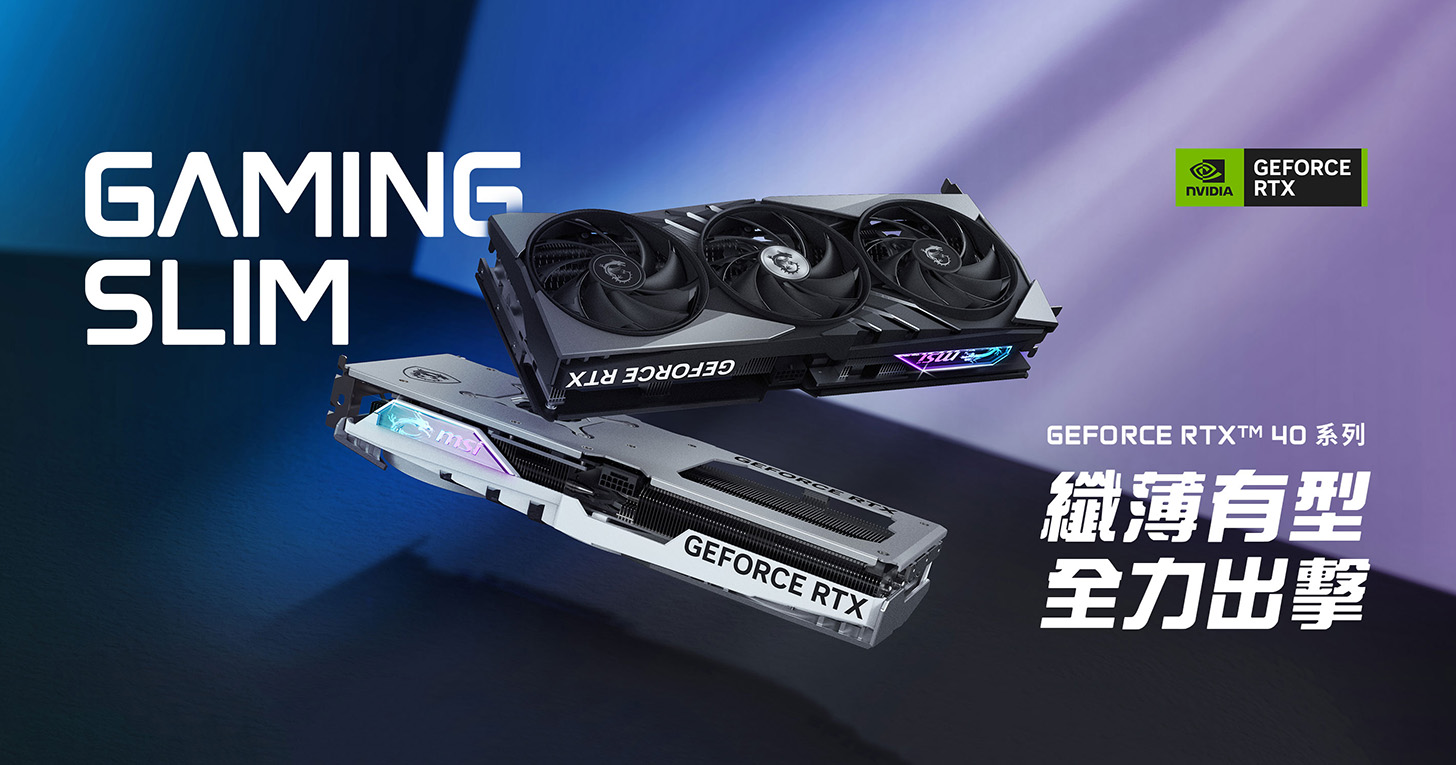

▲ 纖薄有型、全力出擊 MSI 全新 GAMING SLIM 系列顯示卡登場

纖薄有型全力出擊

GAMING SLIM 提供黑色和白色兩種版本，透過大膽的線條、俐落的邊緣和時尚外觀的 RGB 色調體現出玩家勇於冒險的 GAMING 本色。隱藏在纖薄外型中，優異的散熱能力絲毫不受影響。由 MSI 最新一代散熱解決方案 TRI FROZR 3 驅動的散熱系統，採用 TORX FAN 5.0 以及透過外框連接的成對三個風扇葉片，形成了一個邊框將氣流引導到下方更新的散熱模組中。同時亦具有鍍鎳銅底座和位於散熱器中心的多達 8 個芯管，益於有效散熱。此外，流通式設計的金屬背板同時增強了散熱性和卡的強度。Mystic Light 能使用 Mystic Light Sync 和 Ambient Link 與其他 PC 組件同步燈效。

▲ MSI GAMING SLIM 系列顯示卡提供黑色及白色版本

更吸引熱血玩家的選擇

GAMING SLIM 比 GAMING 系列更輕、更薄，更適合在較小機箱空間內構建遊戲配備的玩家量身訂製。其可確保電腦機箱內的最佳氣流和循環。此外，配備一流的散熱設計以及光線追踪和 NVIDIA DLSS 等先進功能，可以更輕鬆地享受無與倫比的速度，開創效能、沉浸式遊戲、AI 功能和快如閃電的內容創作的嶄新時代。GAMING SLIM 系列非常適合創作專業人士、電競選手、直播主、創作者等。

MSI AFTERBURNER

MSI Afterburner 是全球知名度最高、使用最廣泛的顯示卡超頻軟體。其提供對顯示卡的完全控制，並讓使用者能夠即時監控關鍵系統指標。Afterburner 為流暢的遊戲體驗提供了免費的效能提升，高幀數提供更順暢的遊戲體驗。

MSI CENTER

獨家 MSI Center 軟體透過簡單好用的應用程式，提升使用者體驗。其具有 Frozr AI 散熱功能，將連接到相容的 MSI 主板系統風扇統一起來，以對 GPU 散熱變化做出應對。

產品規格

MODEL NAME	GeForce RTX™ 4090 GAMING X SLIM 24G	GeForce RTX™ 4090 GAMING SLIM 24G	GeForce RTX™ 4080 16GB GAMING X SLIM	GeForce RTX™ 4080 16GB GAMING SLIM
GPU	NVIDIA® GeForce RTX™ 4090	NVIDIA® GeForce RTX™ 4090	NVIDIA® GeForce RTX™ 4080 16GB	NVIDIA® GeForce RTX™ 4080 16GB
INTERFACE	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4
CUDA® CORES	16384 Units	16384 Units	9728 Units	9728 Units
CORE CLOCKS	Extreme Performance: 2610 MHz (MSI Center) Boost: 2595 MHz (GAMING & SILENT Mode)	Extreme Performance: 2535 MHz (MSI Center) Boost: 2520 MHz (GAMING & SILENT Mode)	Extreme Performance: 2610 MHz (MSI Center) Boost: 2595 MHz (GAMING & SILENT Mode)	Extreme Performance: 2520 MHz (MSI Center) Boost: 2505 MHz (GAMING & SILENT Mode)
MEMORY SPEED	21 Gbps	21 Gbps	22.4 Gbps	22.4 Gbps
MEMORY	24GB GDDR6X	24GB GDDR6X	16GB GDDR6X	16GB GDDR6X
MEMORY BUS	384-bit	384-bit	256-bit	256-bit
OUTPUT	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP SUPPORT	Y	Y	Y	Y
POWER CONSUMPTION	450 W	450 W	320W	320W
POWER CONNECTORS	16-pin x1	16-pin x1	16-pin x1	16-pin x1
RECOMMENDED PSU	850 W	850 W	850 W	850 W
CARD DIMENSION (MM)	322 x 136 x 62 mm	322 x 136 x 62 mm	322 x 136 x 62 mm	322 x 136 x 62 mm
WEIGHT (CARD / PACKAGE)	TBD	TBD	TBD	TBD
DIRECTX VERSION SUPPORT	12 Ultimate	12 Ultimate	12 Ultimate	12 Ultimate
OPENGL VERSION SUPPORT	4.6	4.6	4.6	4.6
MAXIMUM DISPLAYS	4	4	4	4
G-SYNC® TECHNOLOGY	Y	Y	Y	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320	7680 x 4320	7680 x 4320	7680 x 4320

MODEL NAME	GeForce RTX™ 4080 16GB GAMING X SLIM WHITE	GeForce RTX™ 4080 16GB GAMING SLIM WHITE	GeForce RTX™ 4070 Ti GAMING X SLIM 12G	GeForce RTX™ 4070 Ti GAMING SLIM 12G
GPU	NVIDIA® GeForce RTX™ 4080 16GB	NVIDIA® GeForce RTX™ 4080 16GB	NVIDIA® GeForce RTX™ 4070 Ti	NVIDIA® GeForce RTX™ 4070 Ti
INTERFACE	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4
CUDA® CORES	9728 Units	9728 Units	7680 Units	7680 Units
CORE CLOCKS	Extreme Performance: 2610 MHz (MSI Center) Boost: 2595 MHz (GAMING & SILENT Mode)	Extreme Performance: 2520 MHz (MSI Center) Boost: 2505 MHz (GAMING & SILENT Mode)	Extreme Performance: 2745 MHz (MSI Center) Boost: 2730 MHz	Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz
MEMORY SPEED	22.4 Gbps	22.4 Gbps	21 Gbps	21 Gbps
MEMORY	16GB GDDR6X	16GB GDDR6X	12GB GDDR6X	12GB GDDR6X
MEMORY BUS	256-bit	256-bit	192-bit	192-bit
OUTPUT	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP SUPPORT	Y	Y	Y	Y
POWER CONSUMPTION	320W	320W	285 W	285 W
POWER CONNECTORS	16-pin x1	16-pin x1	16-pin x1	16-pin x1
RECOMMENDED PSU	850 W	850 W	700 W	700 W
CARD DIMENSION (MM)	322 x 136 x 62 mm	322 x 136 x 62 mm	307 x 125 x 51 mm	307 x 125 x 51 mm
WEIGHT (CARD / PACKAGE)	TBD	TBD	1086 g / 1843 g	1086 g / 1843 g
DIRECTX VERSION SUPPORT	12 Ultimate	12 Ultimate	12 Ultimate	12 Ultimate
OPENGL VERSION SUPPORT	4.6	4.6	4.6	4.6
MAXIMUM DISPLAYS	4	4	4	4
G-SYNC® TECHNOLOGY	Y	Y	Y	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320	7680 x 4320	7680 x 4320	7680 x 4320

MODEL NAME	GeForce RTX™ 4070 Ti GAMING X SLIM WHITE 12G	GeForce RTX™ 4070 Ti GAMING SLIM WHITE 12G	GeForce RTX™ 4070 GAMING X SLIM 12G	GeForce RTX™ 4070 GAMING SLIM 12G
GPU	NVIDIA® GeForce RTX™ 4070 Ti	NVIDIA® GeForce RTX™ 4070 Ti	NVIDIA® GeForce RTX™ 4070	NVIDIA® GeForce RTX™ 4070
INTERFACE	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4
CUDA® CORES	7680 Units	7680 Units	5888 Units	5888 Units
CORE CLOCKS	Extreme Performance: 2745 MHz (MSI Center) Boost: 2730 MHz	Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz	Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz	Extreme Performance: 2490 MHz (MSI Center) Boost: 2475 MHz
MEMORY SPEED	21 Gbps	21 Gbps	21 Gbps	21 Gbps
MEMORY	12GB GDDR6X	12GB GDDR6X	12GB GDDR6X	12GB GDDR6X
MEMORY BUS	192-bit	192-bit	192-bit	192-bit
OUTPUT	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP SUPPORT	Y	Y	Y	Y
POWER CONSUMPTION	285 W	285 W	215 W	215 W
POWER CONNECTORS	16-pin x1	16-pin x1	16-pin x 1	16-pin x 1
RECOMMENDED PSU	700 W	700 W	650 W	650 W
CARD DIMENSION (MM)	307 x 125 x 51 mm	307 x 125 x 51 mm	307 x 125 x 46 mm	307 x 125 x 46 mm
WEIGHT (CARD / PACKAGE)	1091 g / 1850 g	1091 g / 1850 g	988 g / 1750 g	988 g / 1750 g
DIRECTX VERSION SUPPORT	12 Ultimate	12 Ultimate	12 Ultimate	12 Ultimate
OPENGL VERSION SUPPORT	4.6	4.6	4.6	4.6
MAXIMUM DISPLAYS	4	4	4	4
G-SYNC® TECHNOLOGY	Y	Y	Y	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320	7680 x 4320	7680 x 4320	7680 x 4320

MODEL NAME	GeForce RTX™ 4070 GAMING X SLIM WHITE 12G	GeForce RTX™ 4070 GAMING SLIM WHITE 12G	GeForce RTX™ 4060 Ti GAMING X SLIM 16G	GeForce RTX™ 4060 Ti GAMING SLIM 16G
GPU	NVIDIA® GeForce RTX™ 4070	NVIDIA® GeForce RTX™ 4070	NVIDIA® GeForce RTX™ 4060 Ti	NVIDIA® GeForce RTX™ 4060 Ti
INTERFACE	PCI Express® Gen 4	PCI Express® Gen 4	PCI Express® Gen 4 x 8	PCI Express® Gen 4 x 8
CUDA® CORES	5888 Units	5888 Units	4352 Units	4352 Units
CORE CLOCKS	Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz	Extreme Performance: 2490 MHz (MSI Center) Boost: 2475 MHz	Extreme Performance: 2685 MHz (MSI Center) Boost: 2670 MHz	Extreme Performance: 2550 MHz (MSI Center) Boost: 2535 MHz
MEMORY SPEED	21 Gbps	21 Gbps	18 Gbps	18 Gbps
MEMORY	12GB GDDR6X	12GB GDDR6X	16GB GDDR6	16GB GDDR6
MEMORY BUS	192-bit	192-bit	128-bit	128-bit
OUTPUT	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)
HDCP SUPPORT	Y	Y	Y	Y
POWER CONSUMPTION	215 W	215 W	165 W	165 W
POWER CONNECTORS	16-pin x 1	16-pin x 1	8-pin x1	8-pin x1
RECOMMENDED PSU	650 W	650 W	550 W	550 W
CARD DIMENSION (MM)	307 x 125 x 46 mm	307 x 125 x 46 mm	307 x 125 x 46 mm	307 x 125 x 46 mm
WEIGHT (CARD / PACKAGE)	988 g / 1750 g	988 g / 1750 g	919 g / 1636 g	919 g / 1636 g
DIRECTX VERSION SUPPORT	12 Ultimate	12 Ultimate	12 Ultimate	12 Ultimate
OPENGL VERSION SUPPORT	4.6	4.6	4.6	4.6
MAXIMUM DISPLAYS	4	4	4	4
G-SYNC® TECHNOLOGY	Y	Y	Y	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320	7680 x 4320	7680 x 4320	7680 x 4320

MODEL NAME	GeForce RTX™ 4060 Ti GAMING X SLIM WHITE 16G	GeForce RTX™ 4060 Ti GAMING SLIM WHITE 16G	GeForce RTX™ 4060 Ti GAMING X SLIM 8G	GeForce RTX™ 4060 Ti GAMING SLIM 8G
GPU	NVIDIA® GeForce RTX™ 4060 Ti	NVIDIA® GeForce RTX™ 4060 Ti	NVIDIA® GeForce RTX™ 4060 Ti	NVIDIA® GeForce RTX™ 4060 Ti
INTERFACE	PCI Express® Gen 4 x 8	PCI Express® Gen 4 x 8	PCI Express® Gen 4 x 8	PCI Express® Gen 4 x 8
CUDA® CORES	4352 Units	4352 Units	4352 Units	4352 Units
CORE CLOCKS	Extreme Performance: 2685 MHz (MSI Center) Boost: 2670 MHz	Extreme Performance: 2550 MHz (MSI Center) Boost: 2535 MHz	Extreme Performance: 2685MHz (MSI Center) Boost: 2670 MHz	Extreme Performance: 2550 MHz (MSI Center) Boost: 2535 MHz
MEMORY SPEED	18 Gbps	18 Gbps	18 Gbps	18 Gbps
MEMORY	16GB GDDR6	16GB GDDR6	8GB GDDR6	8GB GDDR6
MEMORY BUS	128-bit	128-bit	128-bit	128-bit
OUTPUT	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)
HDCP SUPPORT	Y	Y	Y	Y
POWER CONSUMPTION	165 W	165 W	160 W	160 W
POWER CONNECTORS	8-pin x1	8-pin x1	8-pin x1	8-pin x1
RECOMMENDED PSU	550 W	550 W	550 W	550 W
CARD DIMENSION (MM)	307 x 125 x 46 mm	307 x 125 x 46 mm	307 x 125 x 46 mm	307 x 125 x 46 mm
WEIGHT (CARD / PACKAGE)	919 g / 1636 g	919 g / 1636 g	TBD	TBD
DIRECTX VERSION SUPPORT	12 Ultimate	12 Ultimate	12 Ultimate	12 Ultimate
OPENGL VERSION SUPPORT	4.6	4.6	4.6	4.6
MAXIMUM DISPLAYS	4	4	4	4
G-SYNC® TECHNOLOGY	Y	Y	Y	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320	7680 x 4320	7680 x 4320	7680 x 4320

MODEL NAME	GeForce RTX™ 4060 Ti GAMING X SLIM WHITE 8G	GeForce RTX™ 4060 Ti GAMING SLIM WHITE 8G
GPU	NVIDIA® GeForce RTX™ 4060 Ti	NVIDIA® GeForce RTX™ 4060 Ti
INTERFACE	PCI Express® Gen 4 x 8	PCI Express® Gen 4 x 8
CUDA® CORES	4352 Units	4352 Units
CORE CLOCKS	Extreme Performance: 2685MHz (MSI Center) Boost: 2670 MHz	Extreme Performance: 2550 MHz (MSI Center) Boost: 2535 MHz
MEMORY SPEED	18 Gbps	18 Gbps
MEMORY	8GB GDDR6	8GB GDDR6
MEMORY BUS	128-bit	128-bit
OUTPUT	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)
HDCP SUPPORT	Y	Y
POWER CONSUMPTION	160 W	160 W
POWER CONNECTORS	8-pin x1	8-pin x1
RECOMMENDED PSU	550 W	550 W
CARD DIMENSION (MM)	307 x 125 x 46 mm	307 x 125 x 46 mm
WEIGHT (CARD / PACKAGE)	TBD	TBD
DIRECTX VERSION SUPPORT	12 Ultimate	12 Ultimate
OPENGL VERSION SUPPORT	4.6	4.6
MAXIMUM DISPLAYS	4	4
G-SYNC® TECHNOLOGY	Y	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320	7680 x 4320
